GitHub Actions example

Last updated: Apr 6, 2026

This page walks through a real integration example using the fluidattacks/machine_flow public repository. It shows how the SAST and SCA GitHub Actions are configured end-to-end, from the scanner configuration files to the results visible in the GitHub Security tab.

Configuration files

The repository contains two scanner configuration files at its root, one for each action.

.sast.yaml

language: EN
strict: false
output:
  file_path: results.sarif
  format: SARIF
sast:
  include:
    - .

• language — sets the language for vulnerability descriptions in the output (EN for English).
• strict — when false, the scanner reports findings but does not fail the pipeline. Set to true to break the build on any detected vulnerability.
• output.file_path — path where the SARIF results file is written. This value is also exposed as the sarif_file action output, which is passed to the GitHub Security tab upload step.
• output.format — SARIF produces the standard format consumed by GitHub's code scanning API.
• sast.include — list of paths the scanner analyzes. A single . means the entire repository is in scope.

.sca.yaml

language: EN
strict: false
output:
  file_path: results-sca.sarif
  format: SARIF
sca:
  include:
    - .

The fields mirror the SAST configuration. The only differences are:

• output.file_path uses a distinct name (results-sca.sarif) to avoid overwriting the SAST results file in the same workspace.
• sca.include instead of sast.include — the scanner reads this section to locate dependency manifests (package.json, pom.xml, *.csproj, etc.) and checks them against known vulnerability databases.

Workflows

SAST — .github/workflows/dev.yml

.github/workflows/dev.yml runs the SAST action:

name: SAST

on: [push, pull_request]

jobs:
  scan:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
        with:
          fetch-depth: 0 # required: full history enables differential scanning

      - uses: fluidattacks/sast-action@1.1.0
        id: scan

      - name: Upload results to GitHub Security tab
        if: always()
        uses: github/codeql-action/upload-sarif@v4
        with:
          sarif_file: ${{ steps.scan.outputs.sarif_file }}

SCA — .github/workflows/sca.yml

.github/workflows/sca.yml runs the SCA action:

name: SCA

on: [push, pull_request]

jobs:
  scan:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
        with:
          fetch-depth: 0 # required: full history enables differential scanning

      - uses: fluidattacks/sca-action@1.0.0
        id: scan

      - name: Upload results to GitHub Security tab
        if: always()
        uses: github/codeql-action/upload-sarif@v4
        with:
          sarif_file: ${{ steps.scan.outputs.sarif_file }}

Both workflows share the same structure:

• fetch-depth: 0 fetches the full git history. Without it, the action cannot determine which files changed relative to the default branch, and differential scans will not work correctly.
• The action step (sast-action / sca-action) automatically picks full or differential mode based on the event trigger.
• upload-sarif runs with if: always() so results are uploaded even when the scan step exits with a non-zero code (e.g., when strict: true). steps.scan.outputs.sarif_file holds the path declared in the respective configuration file.

What it looks like in GitHub

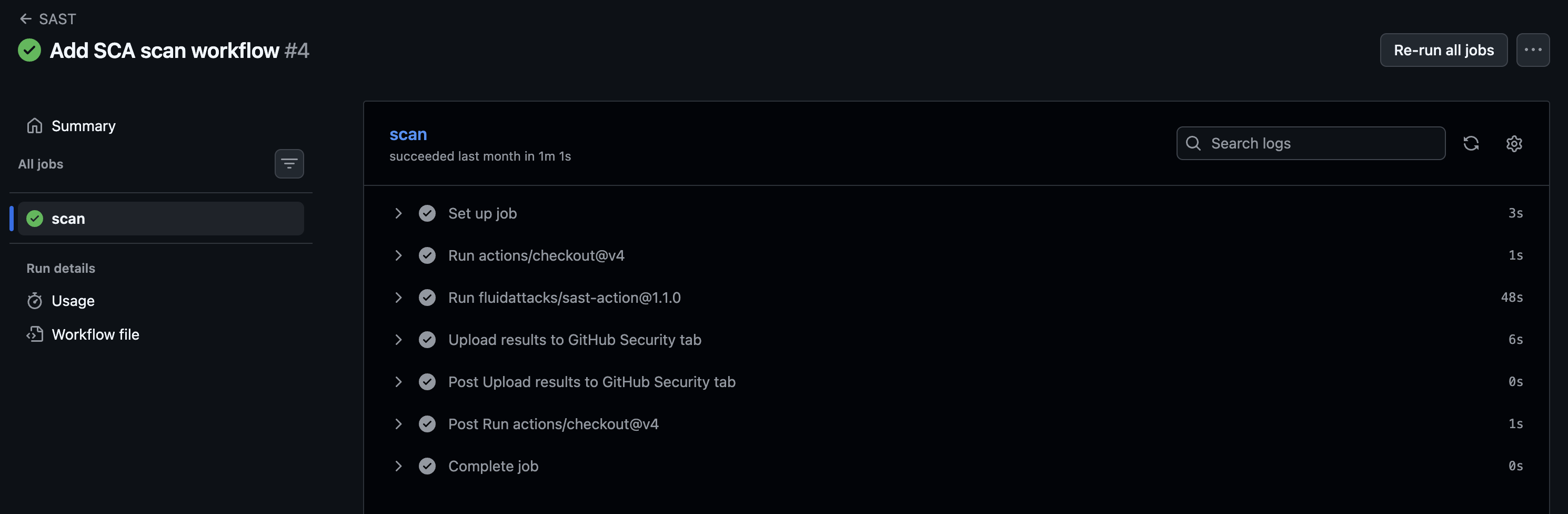

Job steps

After a push or pull request, the workflow appears in the Actions tab with the individual steps: checkout, scan, and upload.

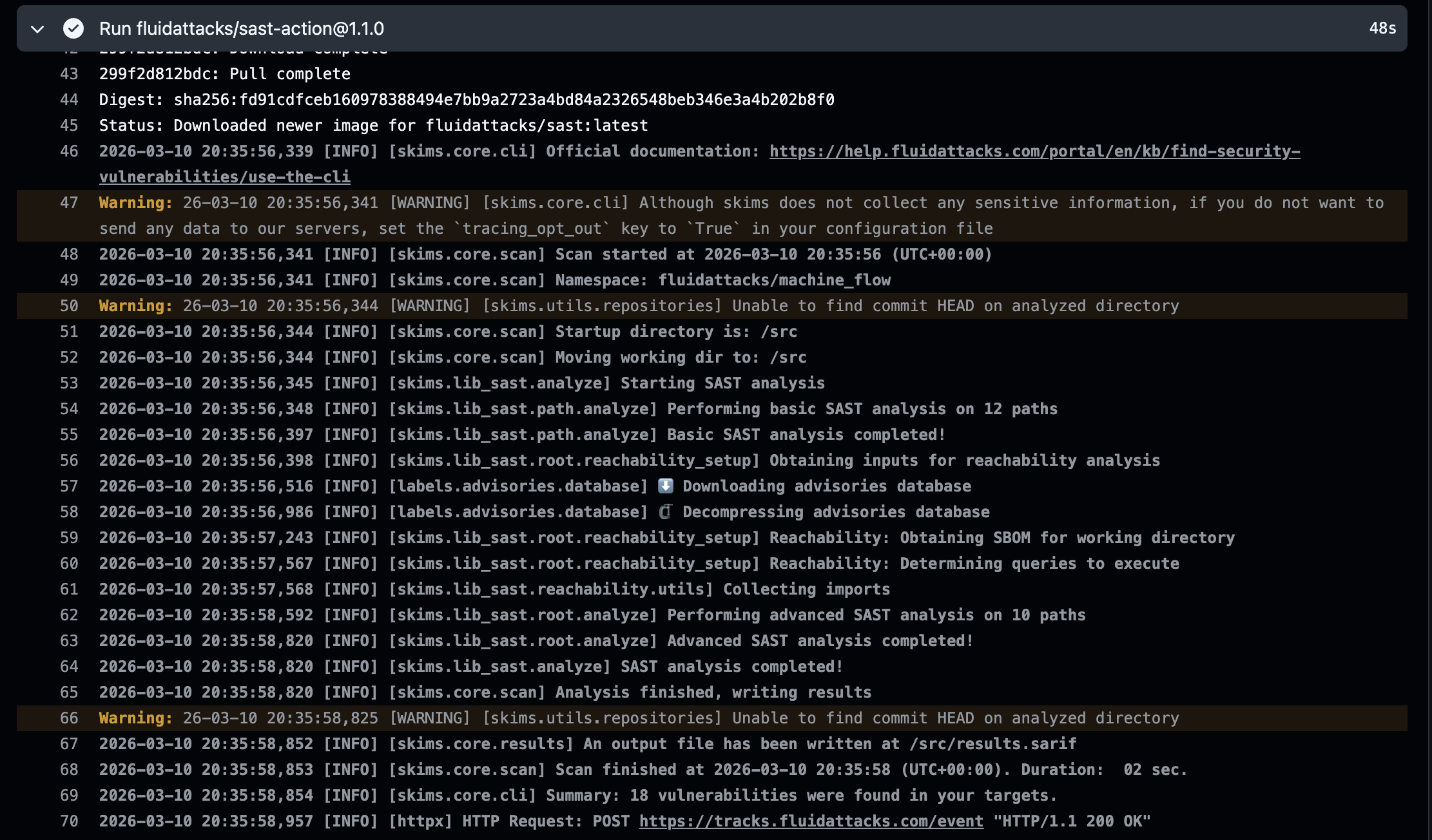

Scanner logs

Expanding the scan step shows the scanner output: which dependency files were found, what vulnerabilities were detected, and whether the run was a full or differential scan.

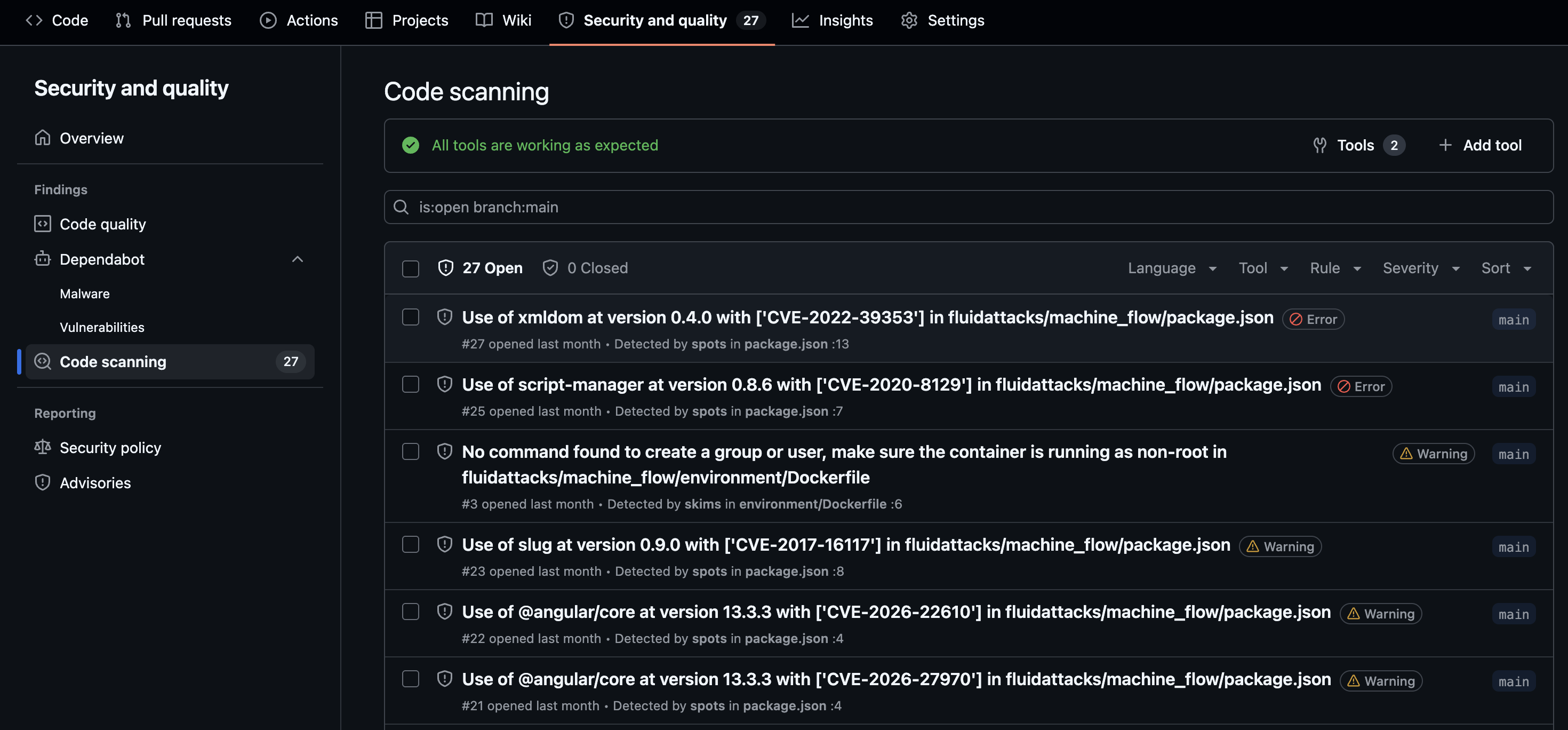

Security tab results

Once the SARIF file is uploaded, findings appear in the repository's Security → Code scanning panel with severity, file location, and a description of each vulnerability.
